针距        Gauge

  5G,6G,7G,BG,9G,10G,12G,13G,14G,15G.16G

  编织系统    Knitting System

  单系统单机头Single System.Single Carriage

  编织宽度    Knitting Width

  44英寸，52英寸，60英寸，80英寸，100英寸Inch

  编织速度   Knitting Speed

  最高速度Max 1.2m/s

  编织功能    Knitting Function

  翻针、吊目、挑孔、提花、嵌花、明收针、暗收针等花型编织。
  Tranfer, tuck, miss, jacquard, intarsia, hide or apparent shaping

  线圈密度    Stitch Density

  步进马达控制，32段密度选择，采用细分技术可调范围：可调范围0-650。
  Stitch system controlled by stepping motor, 32 section stitch selectable, adjustable scope supported by
  subdivision technology:0-650

  针床移位
             Racking

  采用AC伺服马达控制，移针范围达2英寸，同时具有微调功能。
  Controlled by AC servo motor, racking within 2 inches and with fine adjustiing function

  传动方式   Drive System

  同步带传动，伺服电机控制。
  Synchronous belt drive, AC servo system.

  选针装置   Needle Selection

  电磁铁选针机构采用电脑控制，达到稳定高效选针。
  Controlled by computer, electric magnet needle choose system with high efficiency

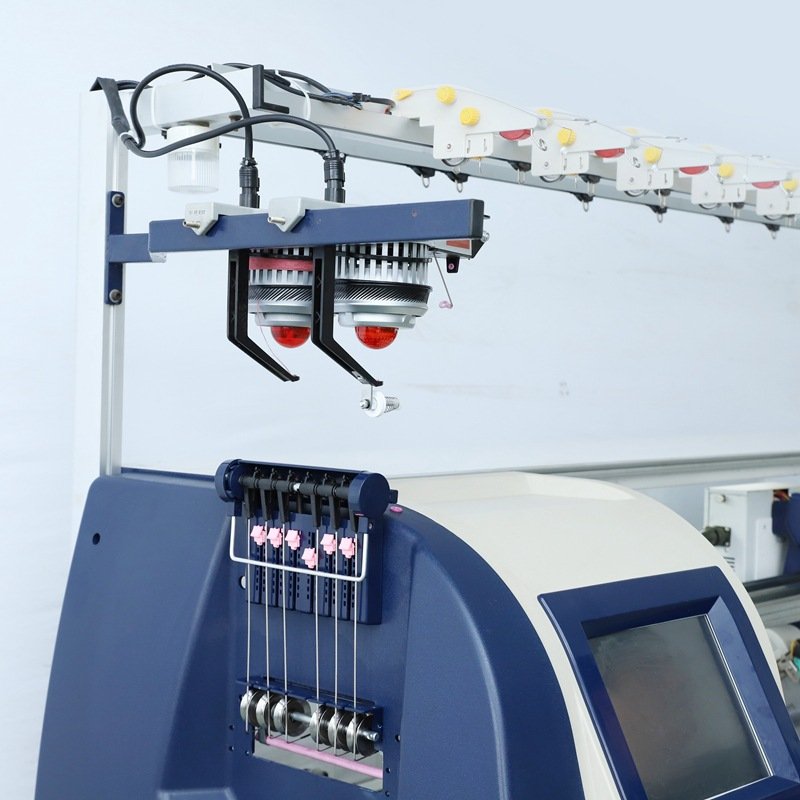

  换色系统    Yarn Carrier

  1x8纱嘴配置在4根导轨的左右两侧，可在针床任何位置换纱。
  1x8 yarn carriers on each side of 4 guide rails, shiftable on any needle position.

  卷布系统    Take Down Roller

  电脑程序指令，步进马达控制，32段拉力选择，可调范围0-100。
  Programmed instruction controlled by stepping motor, 32 section levels selection adjustable area: 0-100

  保护系统    Protection System

  当机器在运转过程中出现断纱、结头、浮纱、倒卷、片数结束、移床未归、撞针脚、程序错误等情况，自
  动报警。
The machine will automatically alarm if yarn breaking, float yarn, rewind,end of knitting, fail of racking, needle
  breakage and error programming occur ect
