Application:

The machine is used to further open raw cotton and remove impurities after the process of mixing. It can clean the aborted seed, stiff cotton and fime dust. Not only the machine is used in single but two sets of the machine are used in series.

Main Feature

1.Phototube control is used to supervise the feeding quartity, so as to the best effect of opening and deaning.

2.Three types of beater can be selected to meet different needs of raw cotton in opening and deaning.

3.The gauges of dust-extracting knives can be regulated to raise the effect of dleaning

4.Less area occupied, good sealing character, less power consumption and lower noise level.

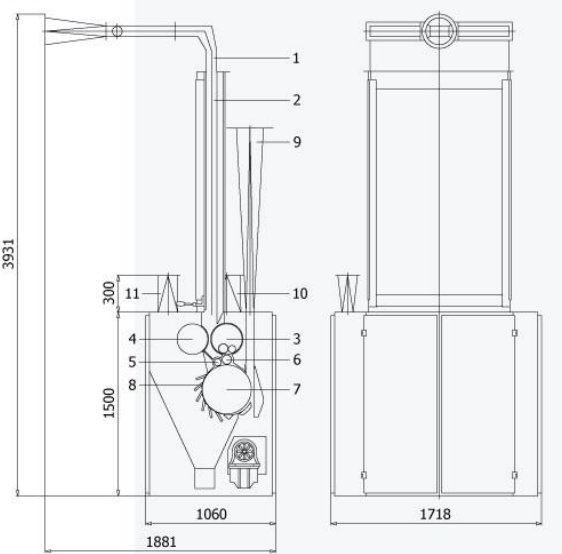

Plane diagram

1.Cotton inlet

2.Laminar trunk

3.Dust cage

4.Plain drum

5.60 feed roller

6.78 feed roller

7.Beater

8.Mote knives

9.Cotton outlet

10.Dust exhaust outlet

11.Exhaust outlet

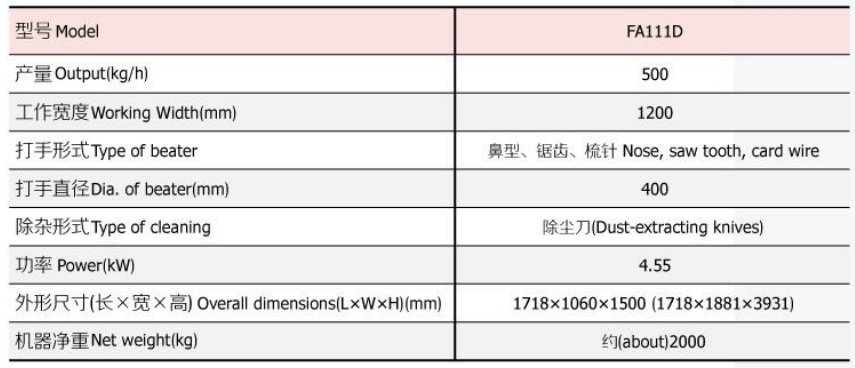

Main technical parameters
