Summary

Type A002D and CFA003 are the first process in blowroom line, which are apply to pluck bales of various classes cotton, man-made fibre below 76cm.

Main Feature

A002D and CFA003 are both furnished with sawtooth disc rollers. From inside to outside discs of A002D and CFA003 are divided in three groups, groups from wide to close so that the cotton could be plucked uniformly in smaller tufts. It is favourable for next process to blend and clean.

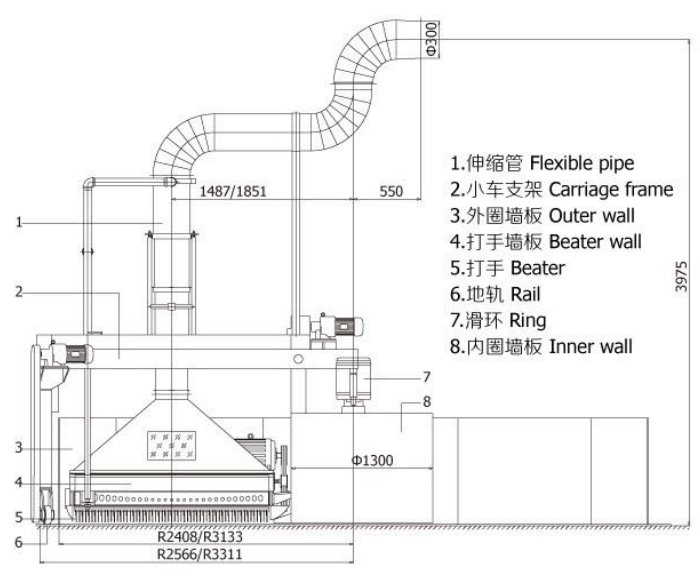

Plane Diagram

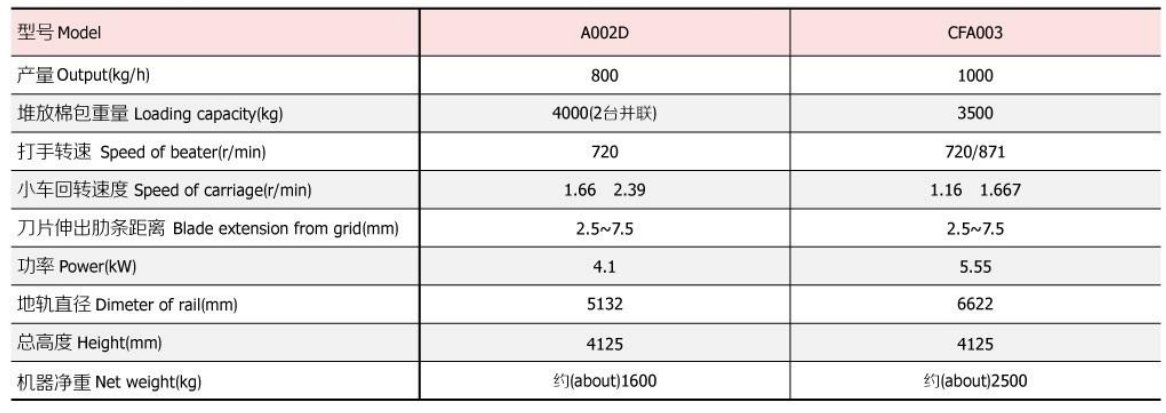

Main Technical Parameters
