Main Feature

1.The way to remove dust is special. Fibre tufts collide with perforated plate and with the help of air current to remove the dust. This machine has advantages as do lttle harm to fibre, high efficiency and flexible process.

2.A frequency- inverted stepless variable motor is used for the delivery fan, the speed of which can be set according to the air pressure requirement of the system.

Application

The machine is suitable for processing cotton of various grades and is usually used as the last dedusting point in cleaning line.

Micro dust can be removed efficiently dust if the fibre has been sufficiently opened. Application of this machine in the cleaning line is of special importance in the mills having rotor spinning and air-jet loom， since the end breakage in spinning due to dust-laden fibre can be greatly reduced.

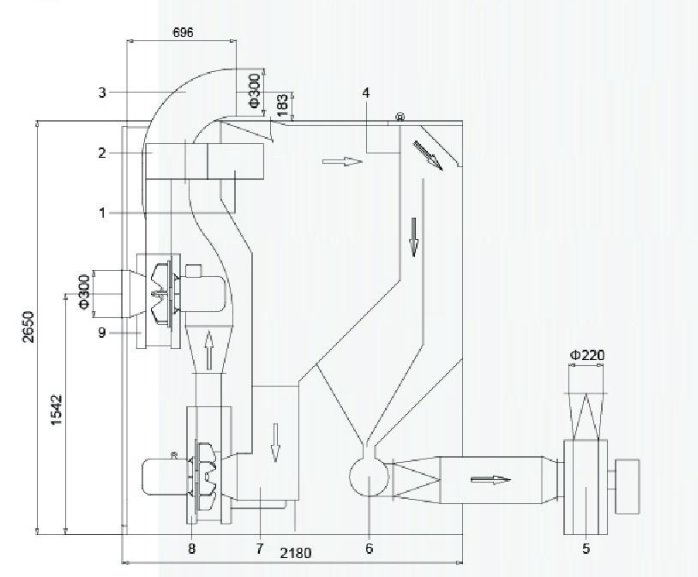

Plane diagram

1.Swing plate

2.Inlet pipe

3.Outlet pipe

4.Perforated plate

5.Dust exhaust fan

6.Dust exhaust pipe

7.Delivery duct

8.Outlet fan

9.Inlet fan
