This model has been developed and designed by the company since 2012 according to customer needs. After 5 years of successful R & D and test, it is used to process all kinds of waste cotton, waste yarn, silk return, cloth corner, cloth block, flax, etc.

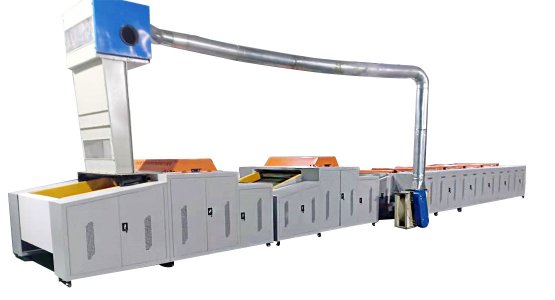

The main engine is composed of GA-1390 opening and cleaning, which has achieved the best effect of high yield, low energy consumption, environmental protection and dust removal. The machine has applied for a number of patents and was successfully put into use by customers in the market in 2017.
Main technical parameters | |
Overall diamensions (L×W×H) | 13680×2000×1400mm |
Weight | 13000kgs |
Output | 300-400kg/h |
Capcity of removing impurities | 5%-14% |
Cylinder diameter | 800-600-400-400-350-350-350-350mm |
Cylinder rotation speed | 960-1100-1890-1890-1890-1890-1890-1890- rpm/min |
Power | 30-22-11-7.5-7.5-7.5-7.5-7.5kw |
Wire of cylinder | Card clothing/pin/U type |
