Application

FA025 FA025A & FA025-160 are used for blending cotton,chemical fiber or blends. After fiber is fed into Mulit- mixer, airflow blows it into every hopper evenly to form a airflow blending. The fber in every hopper is conveyed in a 90 turn by the different convery distance. And the excessive fiber is thrown into blending room to attain fine mixture.

Main Feature

1.Designed with PLC control system and connected with the PLC of front and back machine.

2.Intensive three times mixture, all kinds of fiber can be even blended.

3.The pressure in hopper can be automaticatly monitored, controlling bale plucker to start or stop.

4.Transport belt and spike lattice are controlled by motor with inverter, can be stepless speed regulation.

5.Sensitive detect section, obtaining continuous running of the whole process.

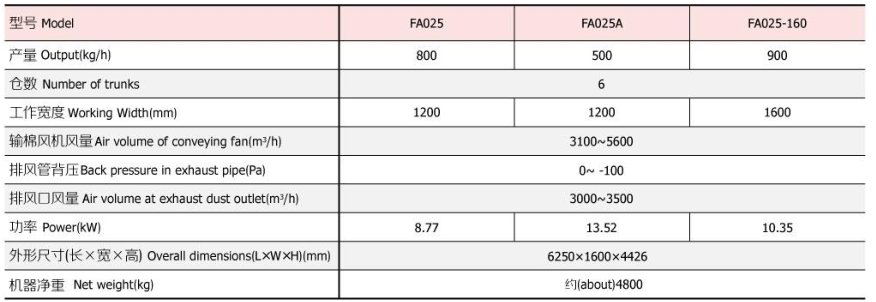

Main technical parameters

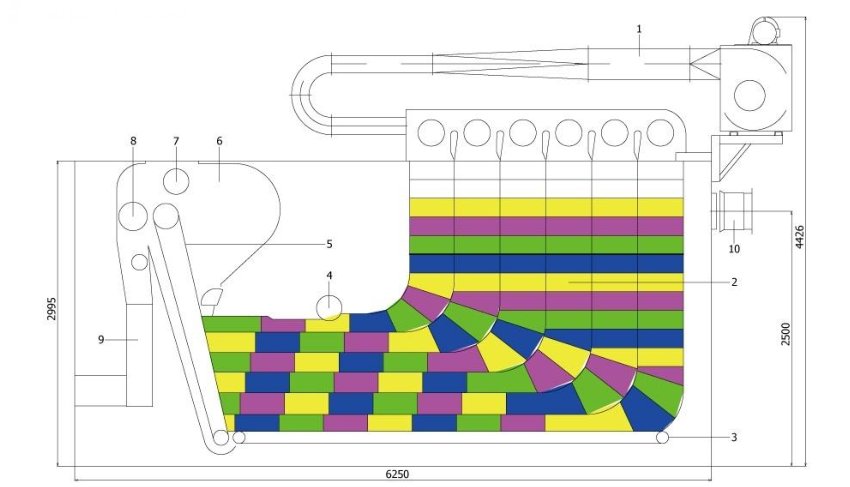

Plane diagram

1.Feeding tube 2.Vertical storing trunks 3. Conveyer lattice

4Guiding roller 5. Inclined lattice 6.Mixing chamber

7.Evener roller 8.Stripping roller 9. Reserving box

10.Dust exhaust outlet
