Application

This machchine is designed for processing various grades of cotton or man-made fibres.

By the suction of a condenser, the raw material processed by the prior machine is fed to the machine for mixing, opening, removing parts of impurities. It is a mixing opener of high efficiency.

Main Feature

1.The machine has not only the action of mixing but also the functions higher opening and cleaning. Its deaning efficiency is higher that than of the machine of the same kind.

2.The especial grid bars device is nicety and convence.

3.SFA035B(C) a fully-endosed steel plate structure is dopted for the frame with its appearance being neat and beautiful.

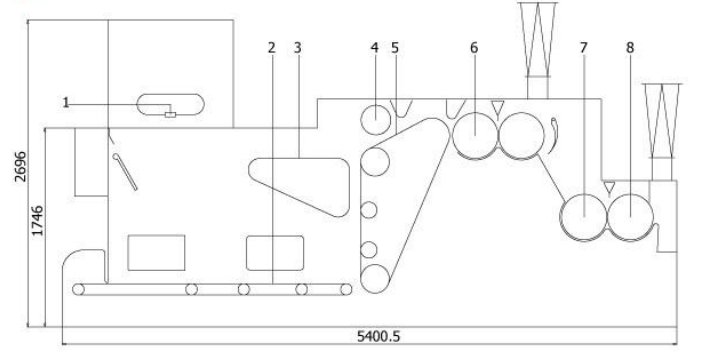

Plane diagram

1.Photo-device 2. Delivery lattice

3.Calender lattice

4.Evener roller 5.Spiked lattice 6.Blade beater

7.Porcupine beater 8. Nose beater

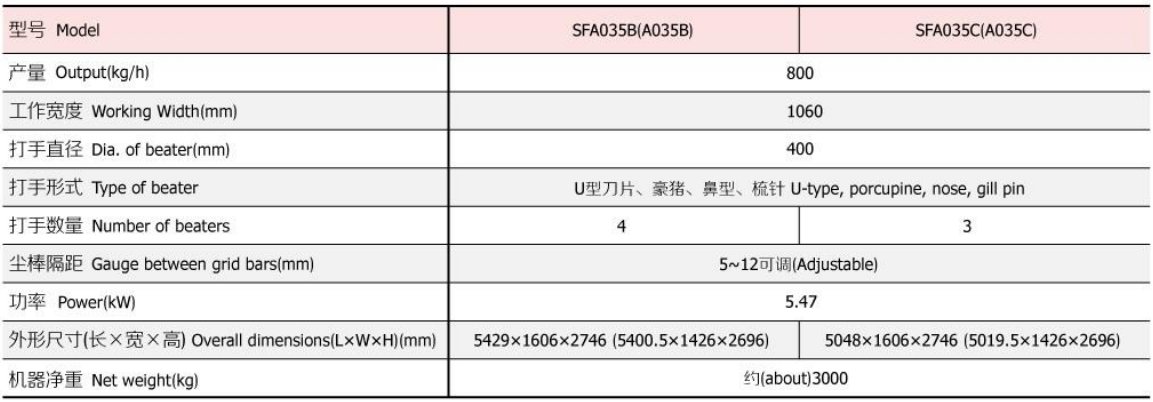

Main technical parameters
