Application

Model CFA24 wegiht separator is used for excluding most of trash and abnormal matter in fiber tuft. When cotton pass through bridge-magnet, iron-trash is removed at the same time. Model CFA24 weight separator, working in fiber current,is made up of adjustation duct. When cotton fiber contact gird bar, trash is separated from fiber tuft due to difference of centrifugal force then sucked away through dust pipe .

Main Feature

1.Power free trash removing, easily adjustable angle of grid bar .

2.Transporting fan and bridge-magnet are erected in CFA026 directly which save bracket and area occupation.

3.If required, CFA026 with continuous suction system is available and need no manual clean，

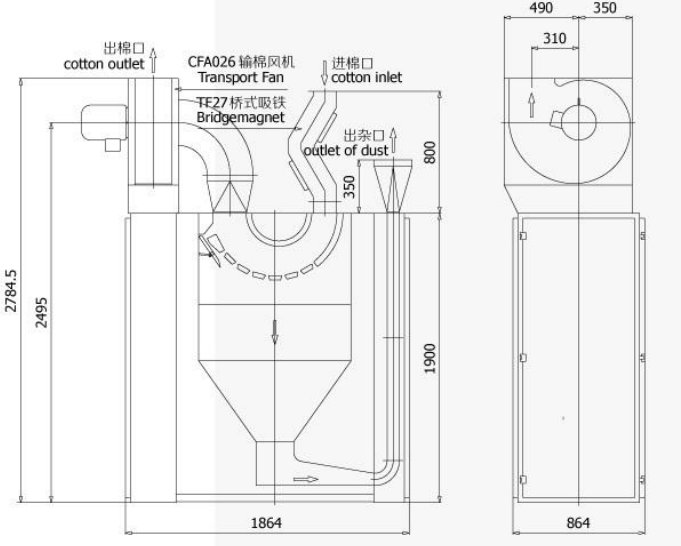

Plane Diagram

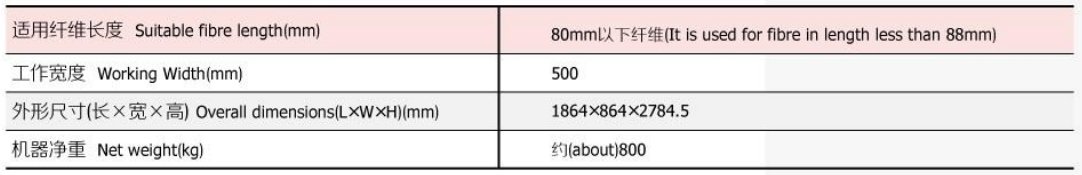

Main Technical Parameters
